vänEE 1001/2001 Gold Series Air Exchangers

The vänEE 1001/2001 gold series units have been discontinued, however you can still order service parts for these units. These units were designed for quality, offering high efficiency and reliability.

  • 1001/2001 Gold Features
    • External electrical access panel
    • Integrated balancing dampers
    • All parts removable
    • Aluminum framed foam filter
    • Improved sliding system for core insertion
    • Exlusive deeper one piece condensation tray
    • No sharp angles on metal parts
    • Exclusive, reinforced housing
    • Improved defrost damper and damper mechanism

If you are looking to order service parts, please call our office at 1-800-665-3336 x 129 or email us at info@edenenergy.com

  • Service Parts

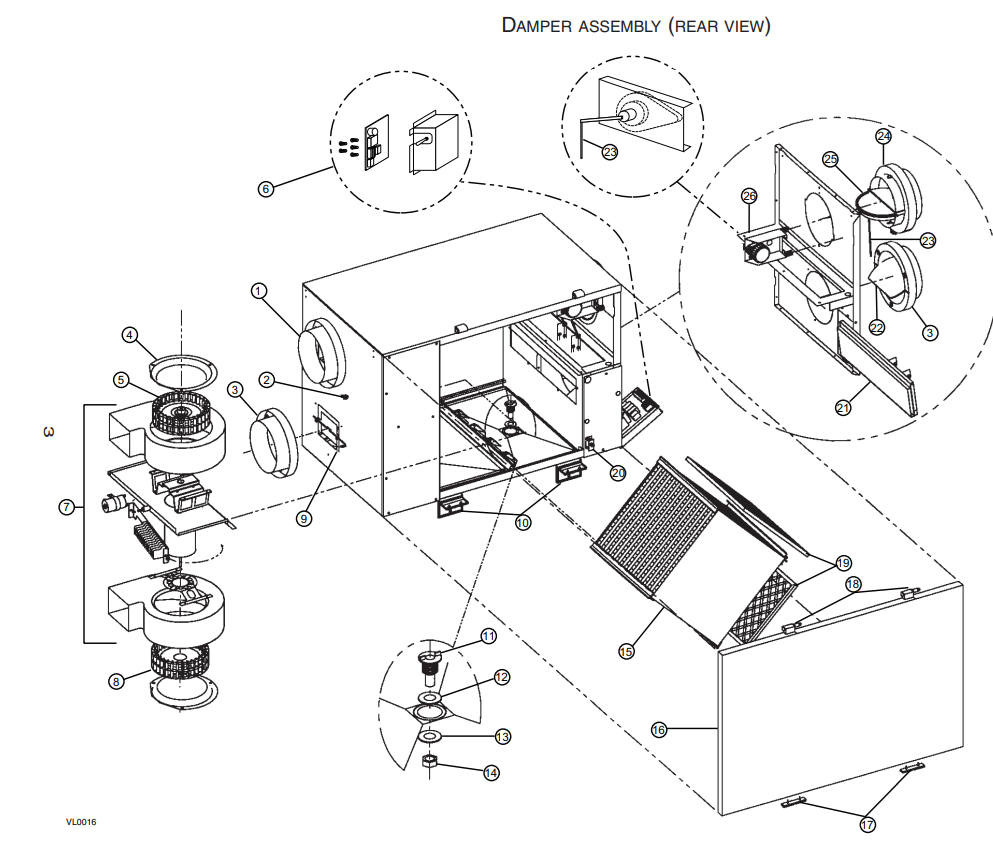

    Diagram # Part # Description 1001 HRV 1001 ERV 2001 HRV 2001 ERV
    1 00866 Double collar port 1 1 1 1
    2 02256 Balancing collar port 1 1 1 1
    3 13507 Circuit board 1
    8A3598...+    		 1
    8B3598...+    		 1
    8C3598...+    		 1
    8D3598...+
    4 13504 Motor assembly 1 — — —
    13555 — 1 — —
    13556 — — 1 —
    13506 — — — 1
    5 12645 Square balancing damper 1 1 1 1
    6 05960 Door latch 2 2 2 2
    7 02418 Drain connector 1 1 1 1
    8 02419 Drain gasket 0.625" 1 1 1 1
    9 03117 Washer 5/8" ID x 1" OD 1 1 1 1
    10 03132 Recovery core 1 — — —
    03136 — 1 — —
    03133 — — 1 —
    03137 — — — 1
    11 12644 Door assembly 1 1 1 1
    12 00887 Door latch 1 1 1 1
    13 00672 Hinge assembly 1 1 1 1
    14 03096 Filter 1 1 — —
    03097 — — 1 1
    15 01825 Switch E69 10A 1 1 1 1
    16 12647 Circuit board 1
    8A3097... to 8A3498    		 1
    8B3097... to 8B3498    		 1
    8C3097... to 8C3498    		 1
    8D3097... to 8D3498
    17 12643 Damper assembly no. 2 1 1 — —
    12649 — — 1 1
    18 02253 Plastic balancing damper 1 1 1 1
    19 12620 Damper rod 1 1 1 1
    20 02021 Double collar port no.5 1 1 1 1
    21 12459 Damper no.1 1 1 1 1
    * 12895 Thermistor 1 1 1 1
    * 03116 Hardware kit 1 1 1 1
    * 03127 Polyester support straps 4 4 4 4
    * 03203 Drain connector 1 1 1 1

    * not shown in image

How to get Service Parts

To order vänEE service parts call 1-(800) 665-3336 x 129, or send an email to info@edenenergy.com. Part numbers can change, meaning that what was once correct may no longer be. Fill in the form completely and a member of our Technical Team will find the correct part number and price.
