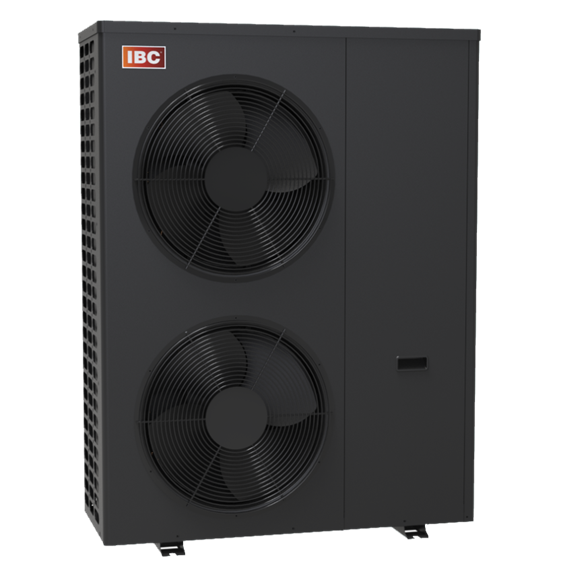

IBC HPX Air-to-Water Heat Pumps

The HPX Air-to-Water Heat Pumps are highly efficient units, capable of delivering up to a 400% efficiency (COP up to 4), significantly reducing energy bills when compared to traditional systems. With advanced temperature control capability, its output is variable to ensure a consistent indoor temperature with less fluctuations. Compared to traditional heating and cooling systems, these units are extremely quiet, with only 38-53dB operational sound level. This system is quieter than most residential refrigerators, and having no moving parts, rarely requires maintenance.

  • IBC HPX Features
    • COP up to 4
    • Advanced Temperature Controls
    • Outdoor Reset Function
    • Enhanced Vapor Injection
    • Quiet Operation
    • Environmentally Friendly
    • Contractor-friendly
background

The Future with Heat Pumps

Air-to-water heat pumps utilize renewable energy pulled from the air in order to heat your home. With fewer greenhouse gas emissions than traditional heating systems, they offer a way to heat your home without hurting the environment. Operating using only electricity means no emissions, no combustion, and no risk of carbon monoxide poisoning, meaning you can heat your home without worrying about your safety.

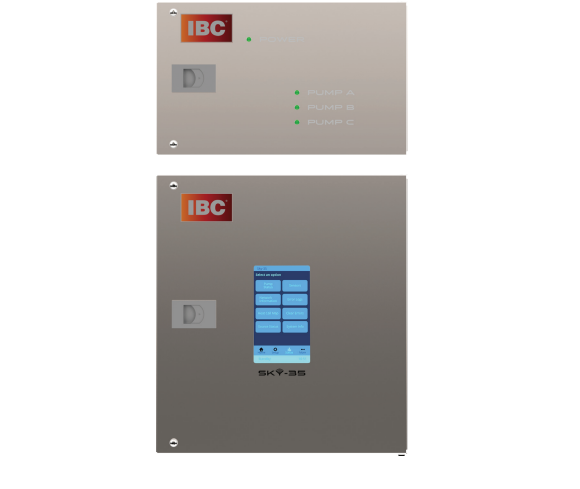

SKY-35 — An Integrated Control for Hybrid Systems

The Sky-35 Controller provides easy and versatile management of multiple heat sources (heat pumps, gas boilers, electric boilers, etc.), serving a variety of loads. With remote connectivity through IBC's online portal, It allows you to set up primary and backup heat sources to complement each other, whether strictly priority or more dynamically, to optimize comfort, operating cost, and energy consumption.

The Sky-35 Controller features an intuitive user interface for easy and smart configuration, and offers flexible options for a wide spectrum of hydronic applications. It allows you to monitor up to 6 IBC HPX heat pumps, 4 IBC EBX electric boilers, 24 IBC gas boilers with V-10 control, and 3 third-party heat sources, all from a central control. Equipped with adaptable hardware connections for easy updates as technologies change and systems are added, this controller is perfect as a long-term solution for your installations.

central bank mini
  • Specifications

    Specifications HPX3 (3 Ton) HPX5 (5 Ton)
    Rated Voltage/Frequency/Phase 208/230V 60Hz 1Ph 208/230V 60Hz 1Ph
    Heating Capacity Range* 9.6 - 44.2 MBH 14.4 - 56.6 MBH
    Heating Capacity Range* 2.8 - 13.9 kW 4.2 - 16.6 kW
    Cooling Capacity Range** 15.5 - 34.5 MBH 21.4 - 47.6 MBH
    Cooling Capacity Range** 4.55 - 10.1 kW 6.3 - 14.0 kW
    Total Load (@240V) 20.3 A 26.6 A
    Noise measured at 1 meter 38 - 52 dB (A) 42-53 dB (A)
    Weight (empty) 220lb / 100kg 320lb / 100kg
    Compressor Rating Load 19.5 A 25 A
    Fan Motor Rating Load 0.8 A 2x 0.8 A
    Minimum Circuit Ampacity 25.2 A 33 A
    Max Fuse Size 40 A 50 A
    Rated Water Flow 6.6 gpm / 1.5m3/h 7.5 gpm / 1.7m3/h
    Water Pressure Drop(Head Loss) 7 feet / 2.1m 9 feet / 2.7m
    Maximum Outlet Water Temp. (electronic hi-limit) 140°F/60°C 140°F/60°C
    Design Water Pressure 30 psig / 207 kPa 30 psig / 207 kPa
    Maximum Water Pressure 145 psig / 1,000 kPa 145 psig / 1,000 kPa
    Minimum Water Pressure 8 psig / 55 kPa 8 psig / 55 kPa
    Minimum Ambient Temperature -22°F/-30°C -22°F/-30°C
    Maximum Refrigerant Pressure (low side) 305 psig / 2.1 mPa 305 psig / 2.1 mPa
    Maximum Refrigerant Pressure (high side) 638 psig / 4.4 mPa 638 psig / 2.1 mPa
    Maximum Allowable Refrigerant Pressure 696 psig / 4.8 mPa 725 psig / 5.0 mPa
    Refrigerant Type and Charge R-410A / 2.2 kg R-410A / 2.2 kg
    Refrigerant Safety Group Classification A1 A1
    Moisture Resistance IPX4 IPX4
    Model Number HPX3
    IHEXXF1-003T    		 HPX5
    IHEXXF1-005T
    Part Number 016-101 A1 016-106 A1

    *for conditions Ambient Temp = 45°F(7°C), Outlet Water Temp = 106°F(41°C)
    **for conditions Ambient Temp = 95°F(35°C), Outlet Water Temp = 54°F(12°C)

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Requirements

    Flow Requirements HPX3 (3 Ton) HPX5 (5 Ton)
    Rated Water Flow* 6.6 gpm (1.5 m3/h) 7.5 gpm (1.7 m3/h)
    Water Pressure Drop 7ft. / 2.1m 9ft. / 2.7m
    Min. Heat Pump Flow Rate (Variable Speed Pump) 3.1USgpm (0.7m3/h) 4.0USgpm (0.9m3/h)
    Max. Heat Pump Flow Rate (Variable Speed Pump) 10.1USgpm (2.3m3/h) 12.0USgpm (2.7m3/h)
    Recommennded Heat Pump Flow Rate 7.0USgpm (2.3m3/h) 12.0USgpm (2.7m3/h)

    *"Rated" indicated the flow rate at which the heat pump's heating output, pressure drop, and noise was measured

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Documentation
    Installation and Operating Manual View File
    HPX 3 Parts Breakdown View File
    HPX 5 Parts Breakdown View File
    Specification View File
    Sales Brochure View File
    Sales Specification Sheet View File
    SKY-35 Installation Manual View File
    SKY-35 Sales Specification Sheet View File
    SKY-35 Warranty View File
