vänEE Bronze Series 41802

The vänEE Bronze Series 41802 ERV are ideal choices for condominiums, apartments, and other installations with minimal space. The new Bronze Series 41802 provides up to 102 CFM with exceptional energy efficiency in a design only 9 inches thick. Easily integrated into the ceiling of each housing unit, this line of models meets all of today's building requirements, providing a profitable solution at every step of your project!

  • Bronze Series Features
    • Advanced blower for quiet operation
    • Integrated anti-vibration installation system
    • ColdShield™ cold protection system
    • Prevent ice build-up with Homeshield™
    • Snap-fit brackets
    • Span-in hooking system
    • 20 PPI filtration with optional MERV 8(#V21030)
    • Requires no drain
    • 5-year parts warranty
background

Why use an air exchanger?

Installing an Energy Recovery Ventilator (ERV) or a Heat Recovery Ventilator (HRV) improves the air quality of your home by providing a supply of tempered, filtered outdoor air while simultaneously exhausting the stale air from your home. With a large lineup of products offering installation options for small, medium, and large spaces alike, create a healthier and more comfortable environment for your family today.

  • Technical Specs

    Model 41802
    Voltage 120
    Min/max continuous airflow(CFM at 0.2 in. w.g.) 57-117
    Sensible recovery efficiency at 32°F 67% (49 CFM)
    Sensible recovery efficiency at -13°F 61% (49 CFM)
    Apparent sensible efficiency at 32°F 74% (49 CFM)
    Product Height 23.125
    Product Width 27.125
    Product Length 9
    Product Weight 35 lbs.
    Ports Location Side
    Ports Size 5" Round
    Core Type ERV
    Defrost Type Recirculating
    Filtration Level 20 PPI (optional MERV 8)
    ENERGY STAR® Certified No
    HVI Certified Yes
    cUL Listed Yes
    UL Listed Yes

    Questions? Call us at 800-665-3336 x 123 or email info@edenenergy.com

  • Documentation
    Specification Sheet View File
    Product Lineup View File
    Installation Guide View File
  • Compatible Controls

    Lite-Touch
    Deco-Touch
  • Service Parts

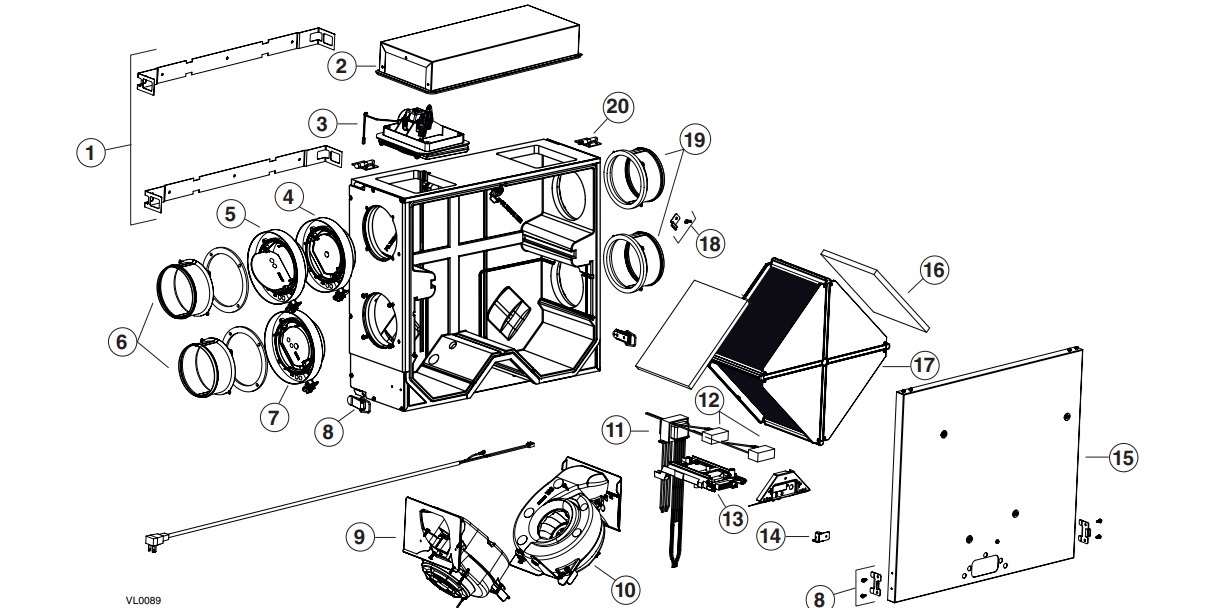

    Diagram # Part # Description Quantity
    1 61240 Installation brackets kit (2) 1
    2 61213 Recirculation channel kit 1
    3 61214 Damper system kit 1
    4 61216 Balancing port kit 1
    5 61219 Balancing and backdraft damper port kit *Not necessary for this model*
    6 61236 Cold side 5" metal port kit 2
    7 61215 Adjustable port kit 1
    8 61218 Door metal keepers and latches kit 1
    9 61235 Blower kit no. 1 (including 1 capacitor) 1
    10 SV61234B Blower kit no. 2 (including 1 capacitor) 1
    11 61232 Transformer kit 1
    12 16042 Capacitors 5 μF 1
    13 61229 Electronic board kit 1
    14 61241 Magnet with bracket kit 1
    15 61225 Door assembly 1
    16 21029 Filter kit (2) 1
    16 21030 Optional MERV 8 Filters 1
    17 61223 ERV Core 1
    18 61237 Core locking device kit 1
    19 61217 Warm side 5" metal port kit 2
    20 61228 Door metal hinges kit (2) 2
    * 61233 Warm side thermistor 1
    * 16416 Terminal connector 1
    * 61221 Cold side thermistor *Not necessary for this model*
    * 61239 Optional hardware kit 1

    If you are looking to order service parts, please call our office at 1-800-665-3336 x 129.

    * not shown in image
