vänEE Bronze Series 44600

The vänEE Bronze Series 44600 units are ideal choices for condominiums, apartments, and other limited space applications that require up to 90 CFM of continuous ventilation. With a compact size and 4 inch ports, they are easily installed into tight spaces such as closets, mechanical rooms, or even above a hot water tank.

  • Bronze Series Features
    • Advanced blower for quiet operation
    • Installable without opening the unit
    • Removable terminal block
    • Pressure taps
    • Balancing dampers
    • Integrated hooks and port straps
    • 5-year part warranty
background

Why use an air exchanger?

Installing an Energy Recovery Ventilator (ERV) or a Heat Recovery Ventilator (HRV) improves the air quality of your home by providing a supply of tempered, filtered outdoor air while simultaneously exhausting the stale air from your home. With a large lineup of products offering installation options for small, medium, and large spaces alike, create a healthier and more comfortable environment for your family today.

  • Technical Specs

    Model 44600
    Voltage 120
    Min/max continuous airflow(CFM at 0.2 in. w.g.) 37-95
    Sensible recovery efficiency at 32°F 66% (47 CFM)
    Sensible recovery efficiency at -13°F 60% (49 CFM)
    Apparent sensible efficiency at 32°F 75% (47 CFM)
    Product Height 18.625
    Product Width 15.625
    Product Length 15.4375
    Product Weight 30 lbs.
    Ports Location Top
    Ports Size 4" Round
    Core Type HRV
    Defrost Type Recirculating
    Filtration Level 30 PPI
    ENERGY STAR® Certified No
    HVI Certified Yes
    cUL Listed Yes
    UL Listed Yes
    Core Warranty Limited Lifetime

    Questions? Call us at 800-665-3336 x 123 or email info@edenenergy.com

  • Documentation
    Specification Sheet View File
    Product Lineup View File
    Installation Guide View File
  • Compatible Controls

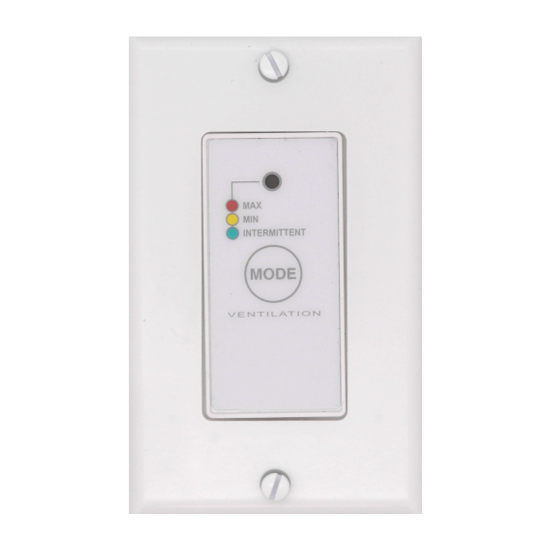

    Lite-Touch
    Deco-Touch

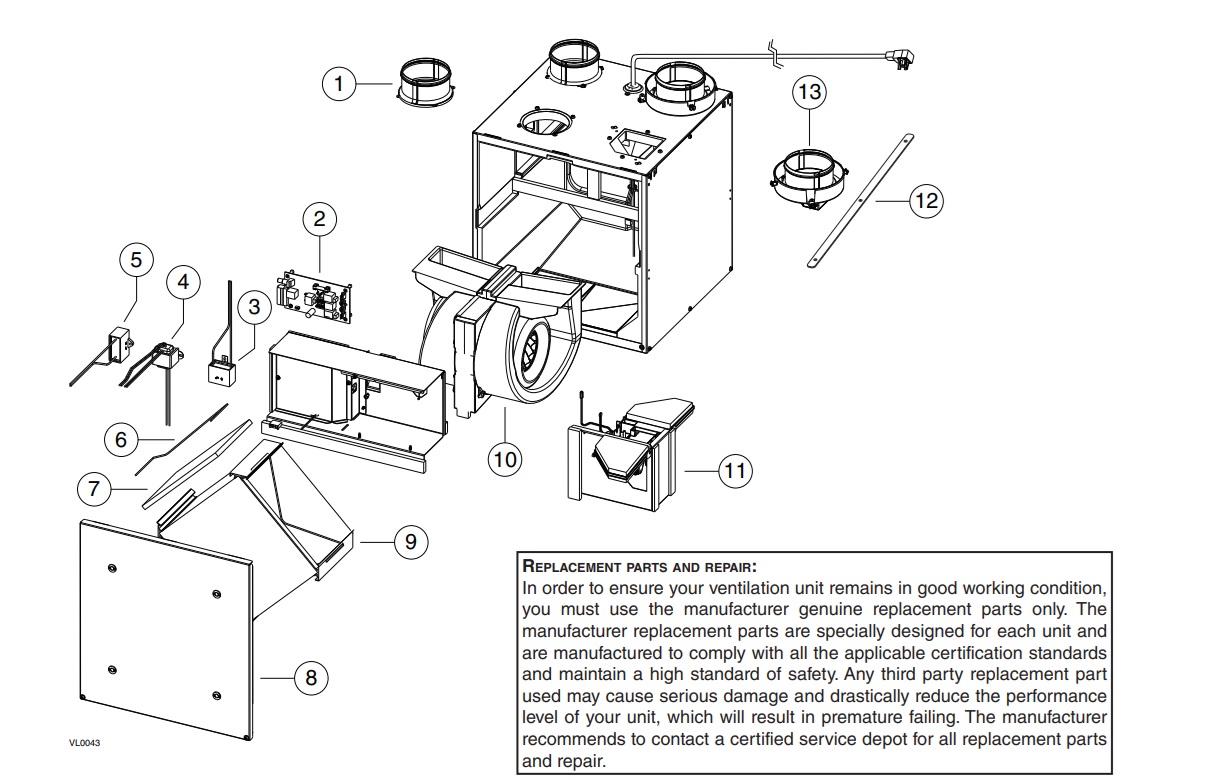

  • Service Parts

    Diagram # Part # Description Quantity
    1 18854 4" Round Metal Port 2
    2 19206 Electronic Board (HRV) 1
    3 16042 Capacitor 5 μF 1
    4 61232 Transformer 1
    5 19211 Capacitor 13 μF 1
    6 19208 Filter retaining wires (pair) 1
    7 18883 Core filters (pair) 1
    8 19203 Door assembly 1
    9 19199 Heat recovery core 1
    10 62176 Blower assembly 1
    11 18868 Vertical ports damper system 1
    12 19212 4" Ports straps 2
    13 18855 4" double collar port with damper 2
    14 19213* Hardware kit 1
    15 16416 PCB Connector 1

    If you are looking to order service parts, please call our office at 1-800-665-3336 x 129.

    * not shown in image
