vänEE AI Series V160 HRV - Top or Side Ports
The AI Series HRV is one of the industry's most advanced residential fresh air systems, created to offer a universal platform designed specifically to make contractors' lives easier. Driven by Virtuo Air Technology™, this unit offers much more than any standard Heat Recovery Ventilator or Energy Recovery Ventilator. These units are capable of providing up to 159 CFM at 82% SRE with options for top or side ports.
-
AI Series Features
- Maintains airflow calibration and auto-balancing
- Integrated LCD Screen
- Automatic airflow setup
- Integrated electronic airflow measurement
- Integrated diagnostic tool
- PMSM ECM Motors for low power consumption
- Option for suspended installation
- Option for wall-mount installation (2 or 4 bracket)
Virtuo Air Technology™
Introducing Virtuo Air Technology™, the first air exchanger artificial intelligence that allows for airflow verification with auto-balancing and self-adjusting to change indoor conditions.
With Virtuo, you can rely on a smart algorithm to ensure optimal indoor air quality. When a pressure change occurs, Virtuo detects it and instantly adjusts the air exchanger's operation to consistently deliver the proper amount of fresh air with minimal energy consumption, staying 100% balanced—always!
-
Technical Specs
Model V160H75RS V160H75RT Min/max continuous airflow(CFM at 0.2 in. w.g.) 35-159 35-159 Sensible recovery efficiency at 32°F 77% (64 CFM) 75% (64 CFM) Sensible recovery efficiency at -13°F 67% (66 CFM) 65% (64 CFM) Apparent sensible efficiency at 32°F 81% (64 CFM) 80% (64 CFM) Product Height 19.13 21.5 Product Width 23.5 21 Product Length 16.3 16.3 Product Weight 35 lbs. 35 lbs. Ports Location Side Top Ports Size 6" Round 6" Round Core Type HRV HRV Defrost Type Recirculating Recirculating Filtration Level MERV 8 (Part #SV66133) MERV 8 (Part #SV66133) ENERGY STAR® Certified No No HVI Certified Yes Yes cUL Listed Yes Yes UL Listed Yes Yes Core Warranty Limited Lifetime Limited Lifetime Questions? Call us at 800-665-3336 x 123 or email info@edenenergy.com
-
Documentation
-
Compatible Controls
Automatic Control
Adv. Touchscreen
20-40-60 Deluxe
Dehumidistat
20-40-60 Override -

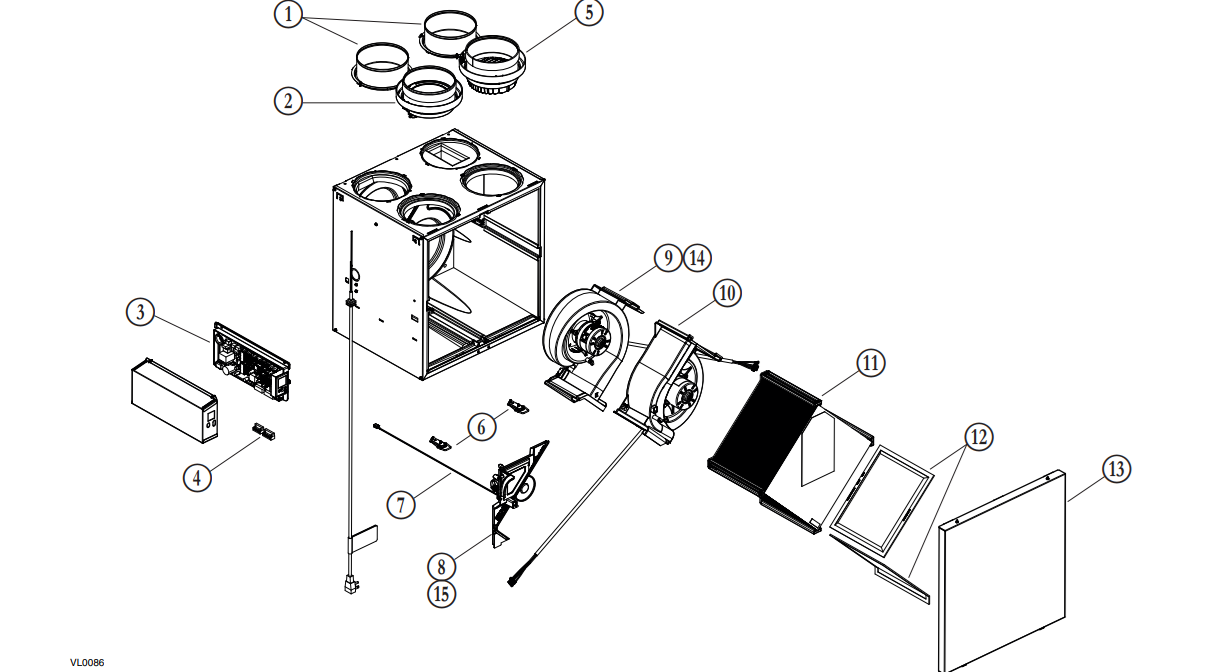

Service Parts
Diagram # Part # Description Quantity 1 SV66139 6" Port Warm Side 2 2 SV66135 6" Metal Port Motorized Damper 1 3 SV66144 Electronic assembly 1 4 SV66145 Terminal Blocks 1 5 SV66137 6" Exhaust Port Assembly 1 6 SV61218 Door latches and keepers for door 1 7 SV66134 Thermistor 1 8 SV66148 Recirculation damper 1 9 SV66142 Exhaust blower with damper 1 10 SV66141 Supply blower assembly 1 11 SV66116 Core HRV 75% 1 12 SV66133 MERV8 Filter kit 1 13 SV66151 Door 1 14 SV66143 Exhaust damper 1 15 SV66149 Separator WE with thermistor *Not necessary for this model* * SV66146 Hardware kit 1 * SV66147 Fuse for PCB 1 * SV00592 1/2" Hose 1 If you are looking to order service parts, please call our office at 1-800-665-3336 x 129.
* not shown in image
