vänEE AI Series V180E75RT - Top Ports
The AI Series V180E75RT provides the easiest installation on the market. This fresh air system can save the installer up to 20 minutes in each installation, thanks to the auto-balancing and self-adjusting technology. The built-in LCD screen provides real-time airflows, power consumption, and acts as a diagnostic error tool. Delivering 199 CFM with a powerful, efficient, and proprietary blower fan motor, making it the ideal solution for larger homes.
-
AI Series Features
- Quick setup with VIRTUO™ auto-balancing and airflow verification
- Consistent results with self-adjustment technology
- Integrated LCD Screen
- Suspended or wall-mount installation
- MERV 8 Filtration
- Superior ERV Core performance
- PMSM ECM Motors for low power consumption
- Compatible with wide range of controls
- ENERGY STAR® Certified
Why use an ERV?
Installing an Energy Recovery Ventilator (ERV) improves the indoor air quality of your home by providing a supply of tempered, filtered outdoor fresh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable. The standard MERV 8 filter offers a more effective design than units in the market with larger capture area and will save the homeowner money with the reusable, easy to wash design.
-
Technical Specs
Model V180E75RT Min/max continuous airflow(CFM at 0.2 in. w.g.) 65-189 Sensible recovery efficiency at 32°F 81% (66 CFM) Sensible recovery efficiency at -13°F 64% (83 CFM) Apparent sensible efficiency at 32°F 84% (66 CFM) Product Height 21.6875 Product Width 24.8125 Product Length 21 Product Weight 47 lbs. Ports Location Top Ports Size 6" Round Core Type ERV Defrost Type Recirculating Filtration Level MERV 8 ENERGY STAR® Certified Yes HVI Certified Yes cUL Listed Yes UL Listed Yes Core Warranty 5 Years Questions? Call us at 800-665-3336 x 123 or email info@edenenergy.com
-
Documentation
-
Compatible Controls
Automatic Control
Adv. Touchscreen
20-40-60 Deluxe
Dehumidistat
20-40-60 Override -

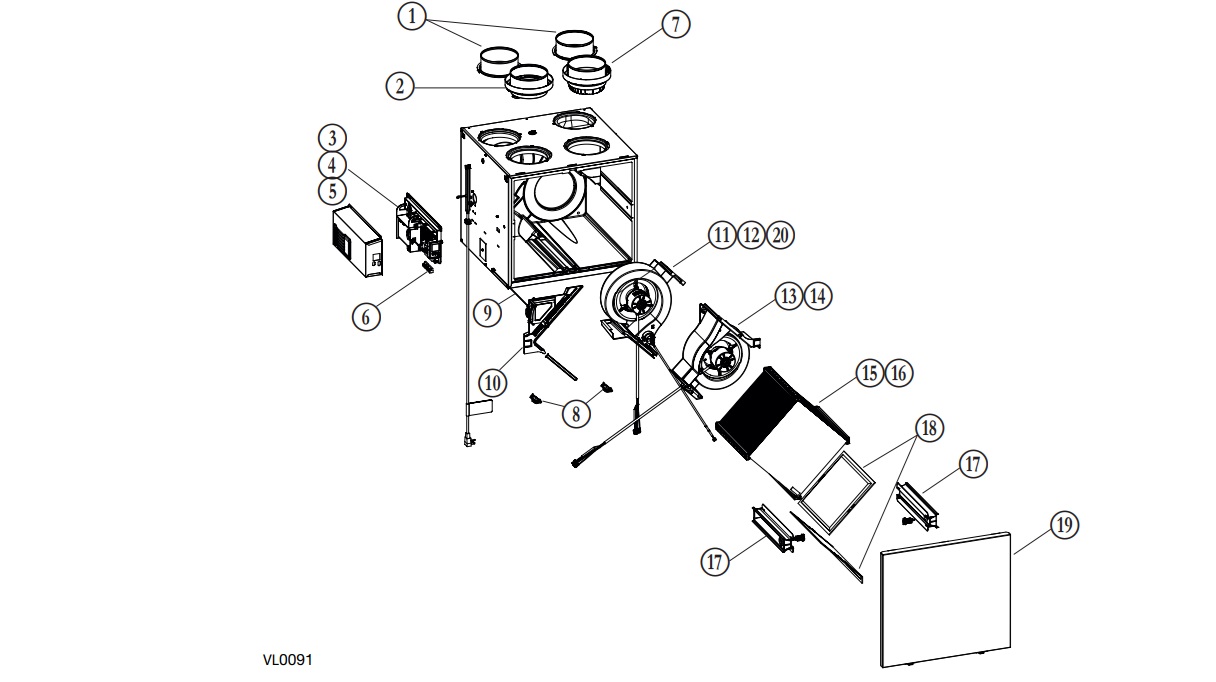

Service Parts
Diagram # Part # Description Quantity 1 SV66139 6" Port Warm Side 2 2 SV66135 6" Metal Port Motorized Damper 1 3 SV68027 Electronic assembly 1 4 SV68028 Electronic assembly with cooling fan kit *Not necessary for this model* 5 SV68031 Cooling fan kit for electronic *Not necessary for this model* 6 SV66145 Terminal Blocks 1 7 SV66137 6" Exhaust port assembly 1 8 SV61218 Door latches and keepers for door 1 9 SV66134 Thermistor 1 10 SV68029 Recirculation damper with thermistor 1 11 SV68022 Exhaust blower assembly with damper 1 12 SV68024 Exhaust blower assembly with damper *Not necessary for this model* 13 SV68021 Supply blower assembly 1 14 SV68023 Supply blower assembly *Not necessary for this model* 15 SV68018 Core ERV 75% 1 16 SV68019 Core HRV 75% *Not necessary for this model* 17 SV68026 Core sliders kit with screws 1 18 SV68020 MERV8 Filters kit 1 19 SV68025 Door 1 20 SV68025 Exhaust damper 1 * SV66146 Hardware kit 1 * SV66147 Fuse for PCB 1 * SV00592 1/2" Hose 1 If you are looking to order service parts, please call our office at 1-800-665-3336 x 129.
* not shown in image
