1-1/2" Stainless Steel Hydraulic headers
-
Specifications
- Connections: Trunks 1-1/2″ G, Branches 1″ MNPT
- Diameter: Trunks ~1-1/2″ (42 mm), Branches 1″
- Size: From 3 to 6 Vertical + 1 x Optional Horizontal Branches
- Material: 302 Stainless Steel
- Recommended Flow: < 13 GPM
- Maximum Flow: 26 GPM
- Maximum Operating Pressure: 145 Psi
- Maximum Operating Temperature: 194°F
- Included are: Header Pair, BSP End Caps, Mounting Brackets
- Optional: Horizontal Branch Adapter
- Recommended: HSU150 Hydraulic Separator 1-1/2″ With Union Connections
- 5 years manufacturer warranty
-
Technical Specs

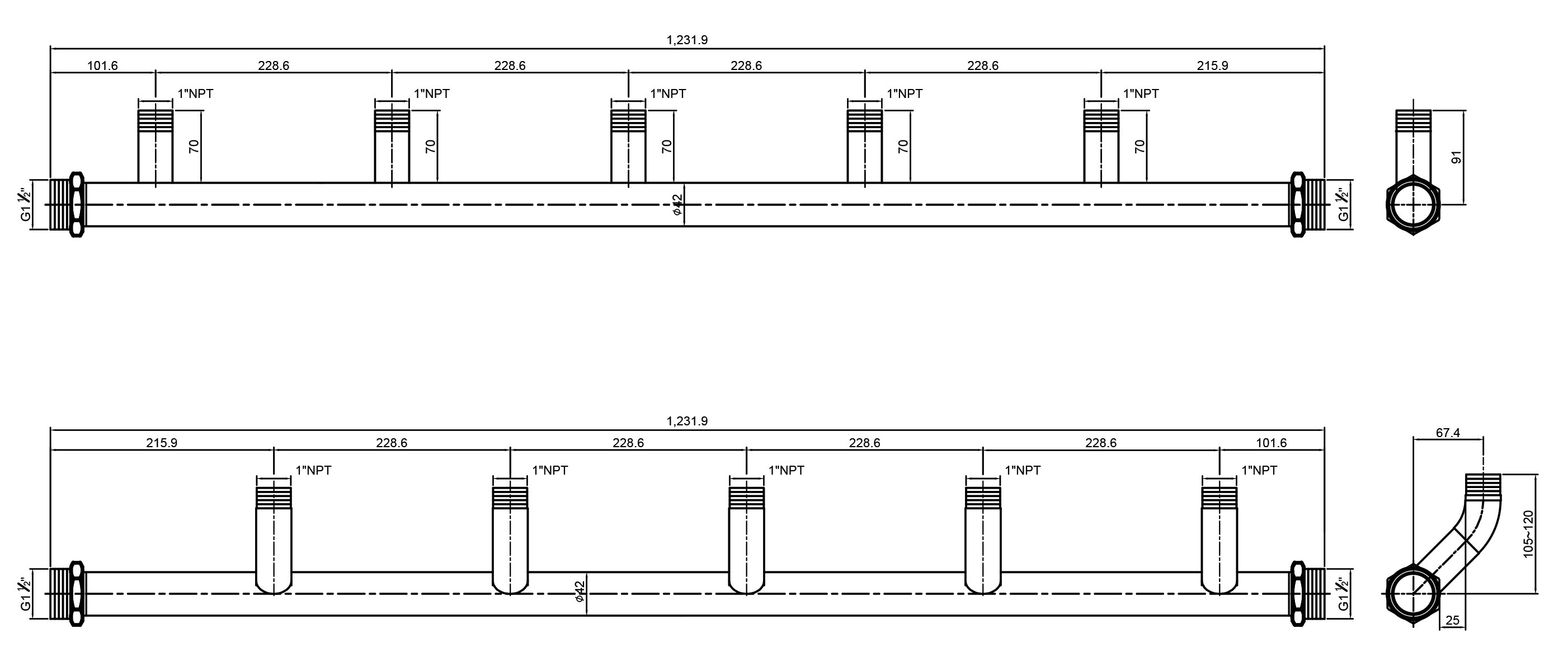

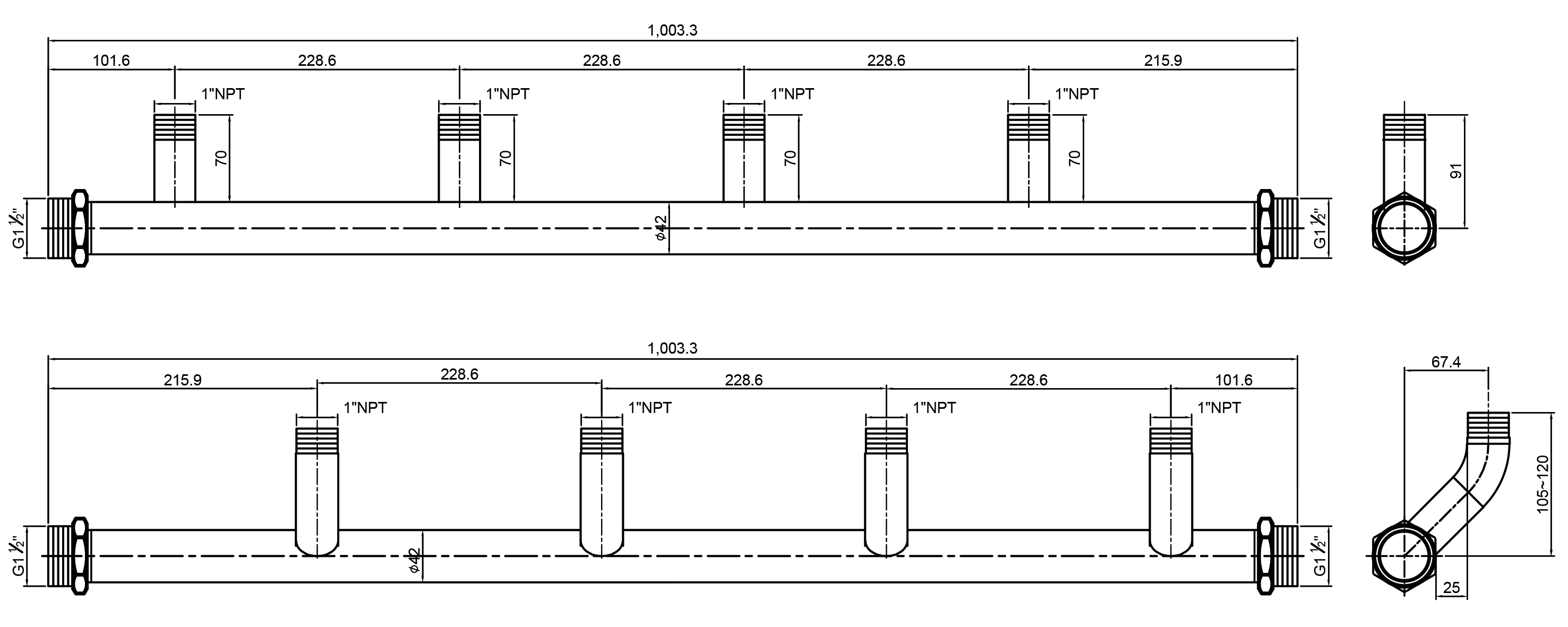

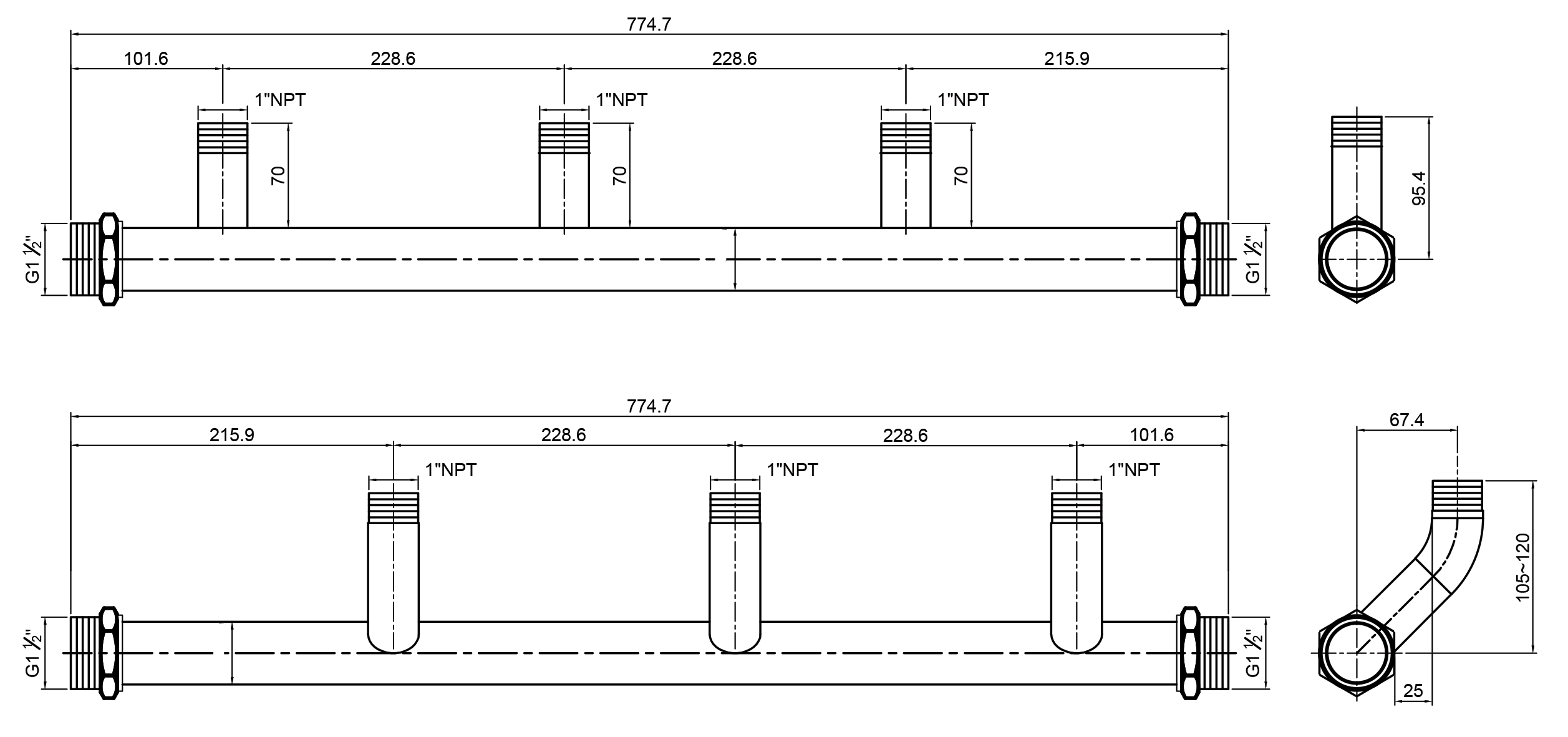

SKU Branch Count Total Length H150104 3+1 30-1/2" (775mm) H150105 4+1 39-1/2" (1,003mm) H150106 5+1 48-1/2" (1,232mm) H150107 6+1 57-1/2" (1,460.5mm) Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
Cut Sheets
