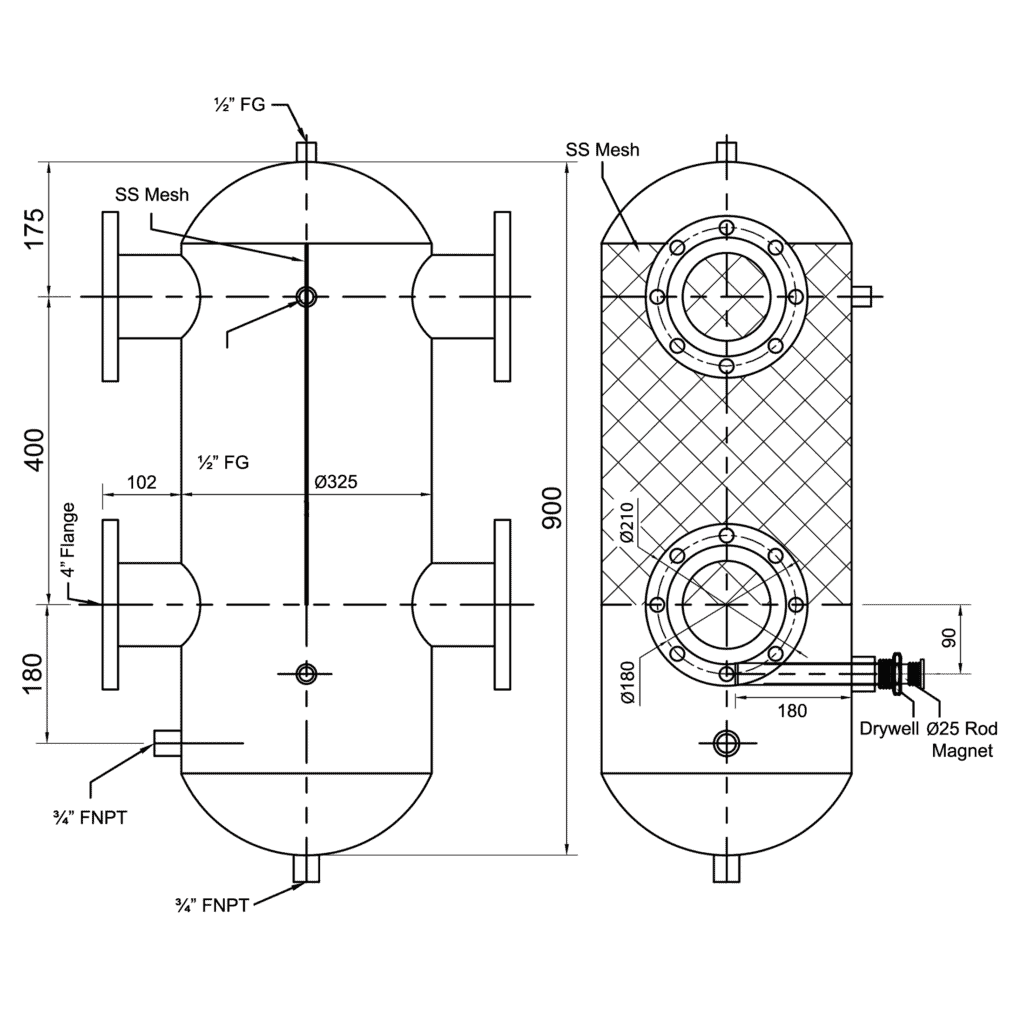

LLH400M Hydraulic Separator with Dirt Magnet
Hydraulic Separators separate the primary and secondary loops, reduce the speed of flow allowing air bubbles to float up and dirt to settle to the bottom where it can be drained.
-
Features
- 4 X DN100 ANSI B16.5 Class 150 Flanges
- Neodymium Rod Magnet
- 1/2″ Air vent on top
- ¾” FNPT drain on the bottom
- ¾” FNPT on side for makeup water
-
Technical Specs
Model Shipping Weight Flow Rate Flow Speed Max Operational Pressure Operation Temp Range Fluids LLH400M 100 lbs. 160 GPM 4ft/s 10bar/150PSI 0-100°C/132-270°F 50% ≥ Water Glycol Mix Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
