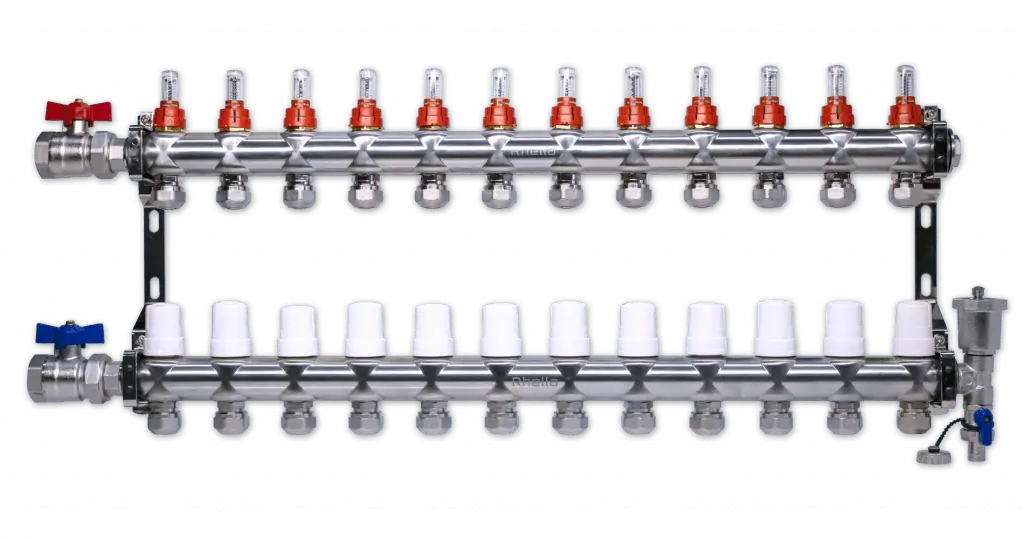

Stainless Steel 1" Manifolds
Max Flow Rate: 14 GPM Trunk, 1.5 GPM Branch Maximum Temperature: 194F at 43.8 psi Maximum Pressure: 145 psi at 68F
-
Included
- Manifold with flow meters and loop valves
- Mounting brackets
- 1 x 1″ End Cap
- 1 x Air Vent With Drain
- 2 x 1″ Ball Valves (1 Red, 1 Blue)
- Thermal actuator compatible circuit valves
-
Technical Specs
Type 1" Manifold Material SEA 304 Stainless Steel Trunk Size 1" Circuit Count 2 to 12 Loops Warranty 5 years PEX SIze 1/2", 5/8", or 3/4" Supply Thread DN 25, 1" Loop thread 20mm Application Radiant Heating Fitting System PEX Compression Tubing PEX Test Pressure 145psi Flow Capacity CV 1.1 (Loop) Max Flow Rate Trunk 14 GPM Max Flow Rate Branch 1.15 GPM Max Operating Temp 194F at 44psi Max Operating Pressure 44psi at 194F, 87 psi at 158F, 145psi at 68F Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
Downloads
Cut Sheets Technical Documentation
