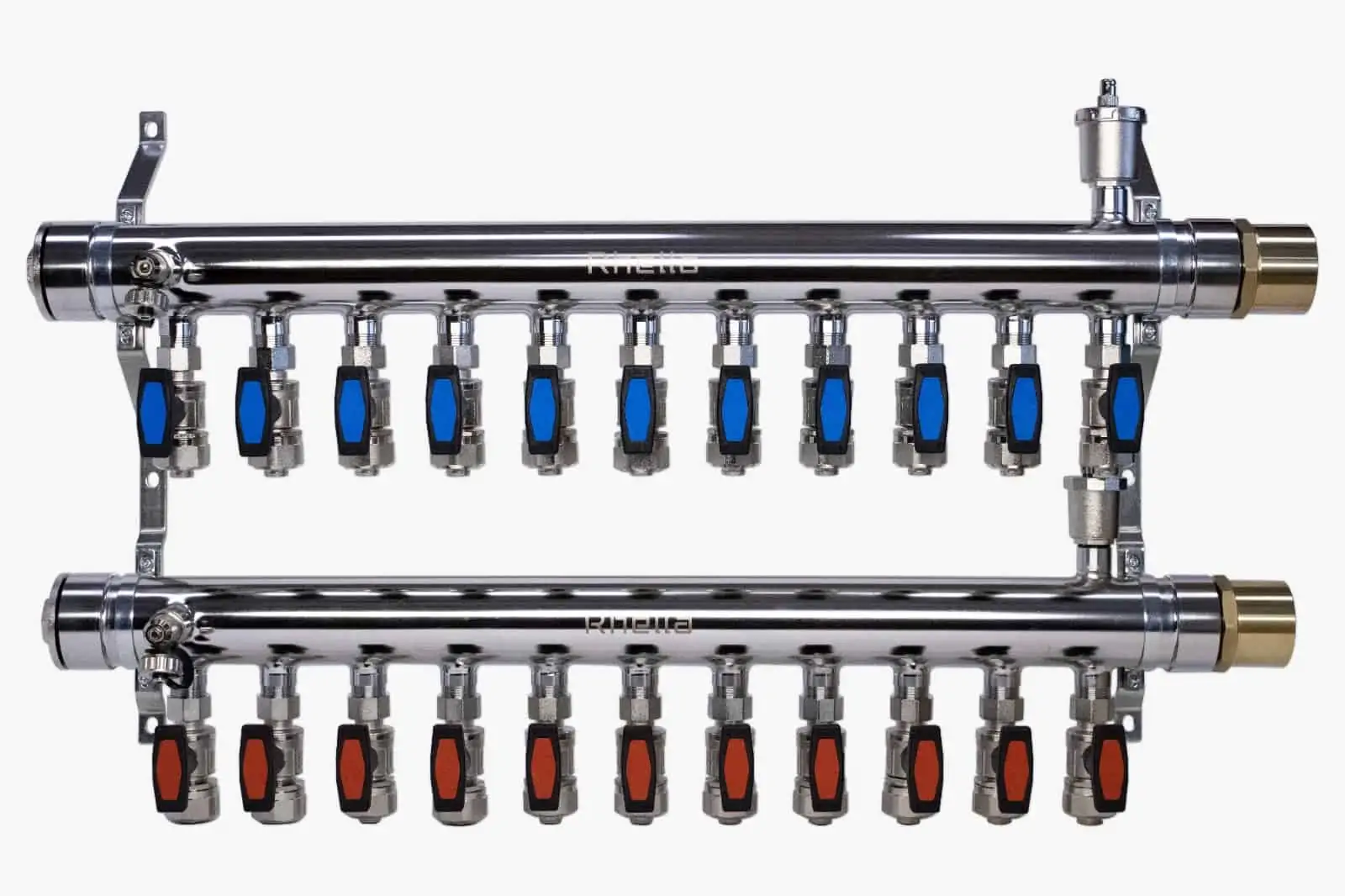

Stainless Steel 2" Xtreme-Flow Manifolds
Max Flow Rate: 75 GPM Trunk, 4.9 GPM per circuit Maximum Temperature: 194F Maximum Pressure: 145 psi ½“, ⅝”, ¾” Compression adapters sold separately

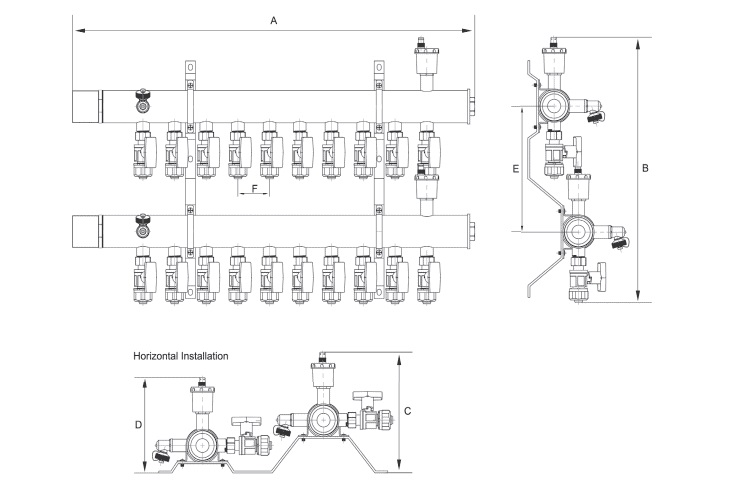

Horizontal or vertical mounted, the air vents are always functional. Rhella X-treme flow manifolds offer true 2-1/2″ unrestricted flow through the Supply-Trunks-Return path. Every Rhella X-treme Flow manifold comes with built in automatic air vents and drains.
-
Included
- Manifold with mounting brackets
- 2 x Air vents and drains
- 2 x 2” End caps
- Blue and red circuit valves
- 2 x 2″ G x SWEAT adapters
- Thermal actuator compatible circuit valves
-
Technical Specs
Type 2" Manifold Material SEA 304 Stainless Steel Warranty 5 years Loop Count 4 to 16 Loops Trunk Diameter 2-1/2" Wall Thickness 3mm PEX SIze 1/2", 5/8", or 3/4" Supply Thread DN 50, 2" G Loop thread 20mm Application Radiant Heating Fitting System PEX Compression Tubing PEX Test Pressure 145psi Max Flow Rate Trunk 75 GPM Flow Coefficient 6 (loop) Max Operating Temp 194F at 44psi Max Operating Pressure 44psi at 194F, 87 psi at 158F, 145psi at 68F Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com
-
Downloads
Cut Sheets Technical Documentation
