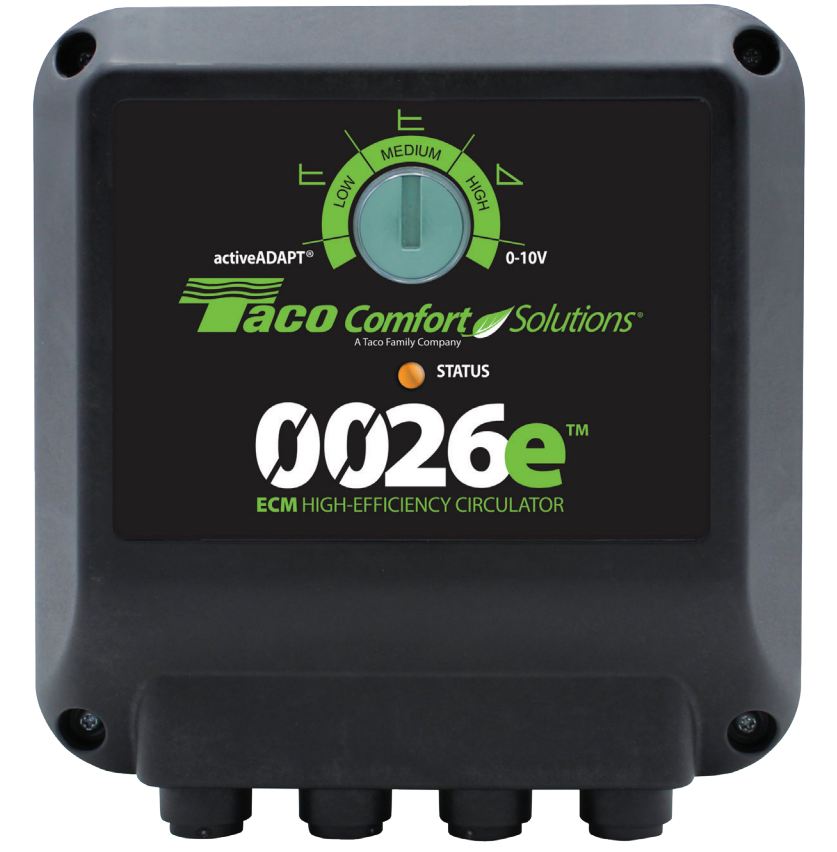

  • 0026e pump image
  • 0026e pump image 2
  • 0026e pump image 3

Taco 0026e ECM High-Efficiency Circulator

Taco 0026e ECM High-Efficiency Circulator The 0026e™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

  • Features
    • 5 easy dial settings to match system requirements - activeADAPT®, LOW, MEDIUM, HIGH or 0-10V DC analog or PWM digital signal external input
    • Replaces all single speed and 3-speed circulators in its class
    • Multi-color LED: power on, mode setting and error code diagnostics
    • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
    • Nut-grabber feature on flanges for easier fit up
    • Multi-color LED
    • SureStart® automatic unblocking & air purge.
    • BIO Barrier® protects pump from system contaminants
    • Nut-grabber flanges for easier fit-up
    • Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
    • Whisper quiet operation
    • Rotatable control cover to simplify installation
    • Acceptable for use with water or maximum of 50% water/glycol solution
    • Taco circulators are for indoor use only
    • Stainless Steel model suitable foropen loop potable water systems
    • Equipped with a cast iron or stainless steel casing

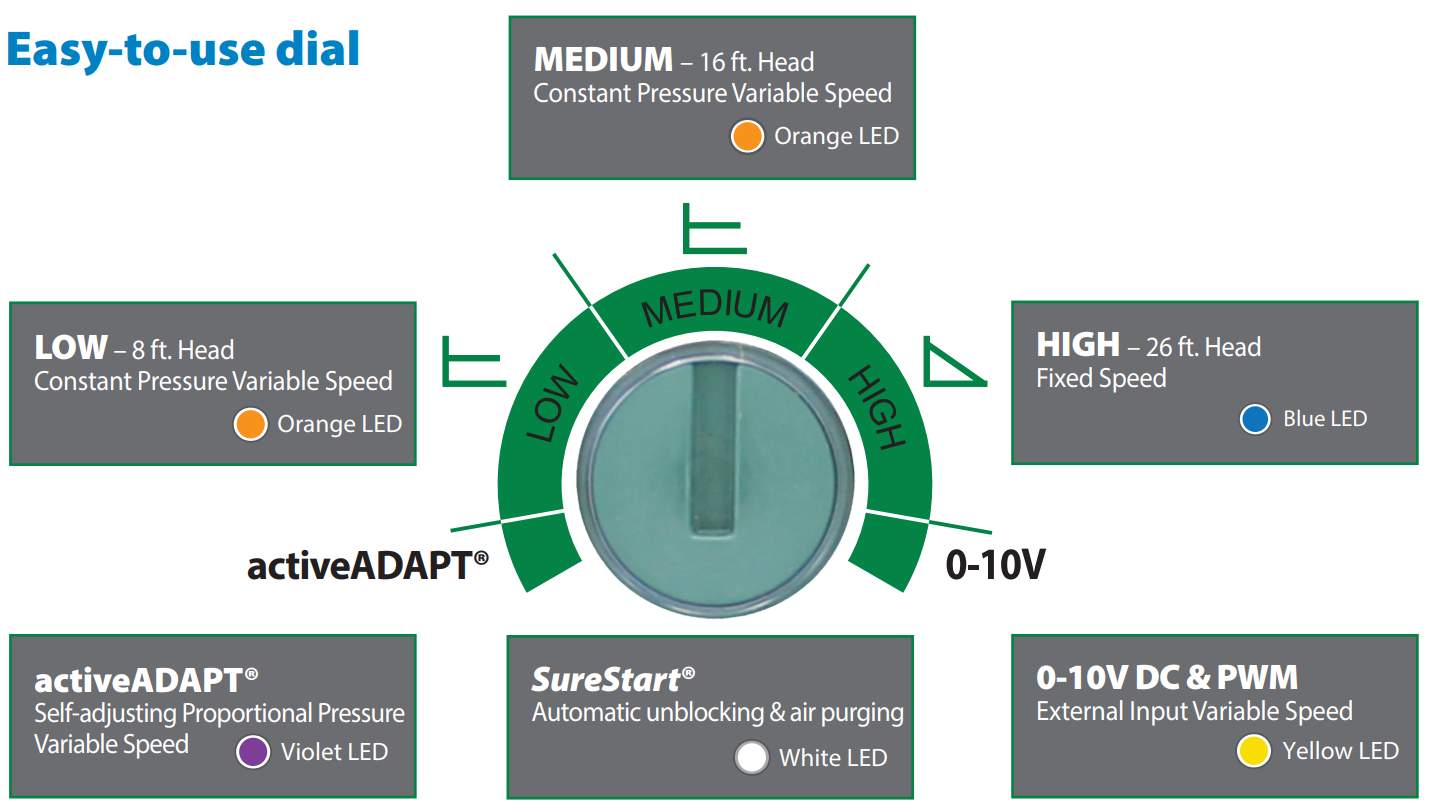

easy to use dial

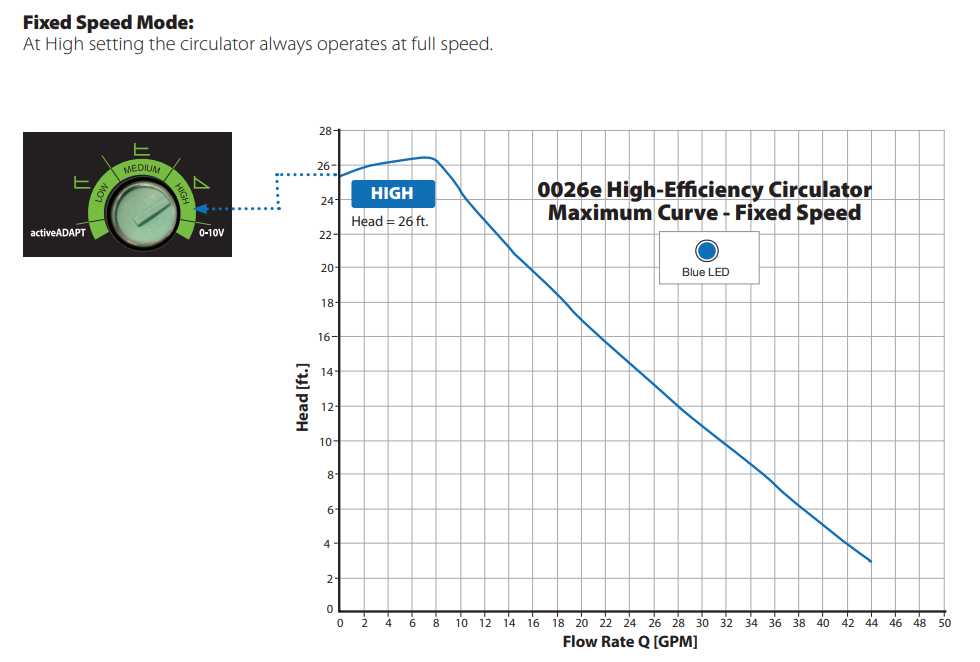

flowchart 0026e flowchart 0026e2 flowchart 0026e3 flowchart 0026e4
  • Technical Specs

    Specifications 0026e
    Max. Shut-off Head - feet 26
    Max. Flow - GPM 44
    Max. Operating Pressure - PSI(bar) 150(10.3)
    Max. Water Temp - °F(°C) 230(110)
    Min. Water Temp - °F(°C) 14(-10)
    Single Phase Voltage - V, Hz 115/208/230, 50/60
    Operating Power Range - W 10-120
    Max. AMP Rating - AMP(V) 1.0(115) - 0.50(230)

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Circulator Pump Extras

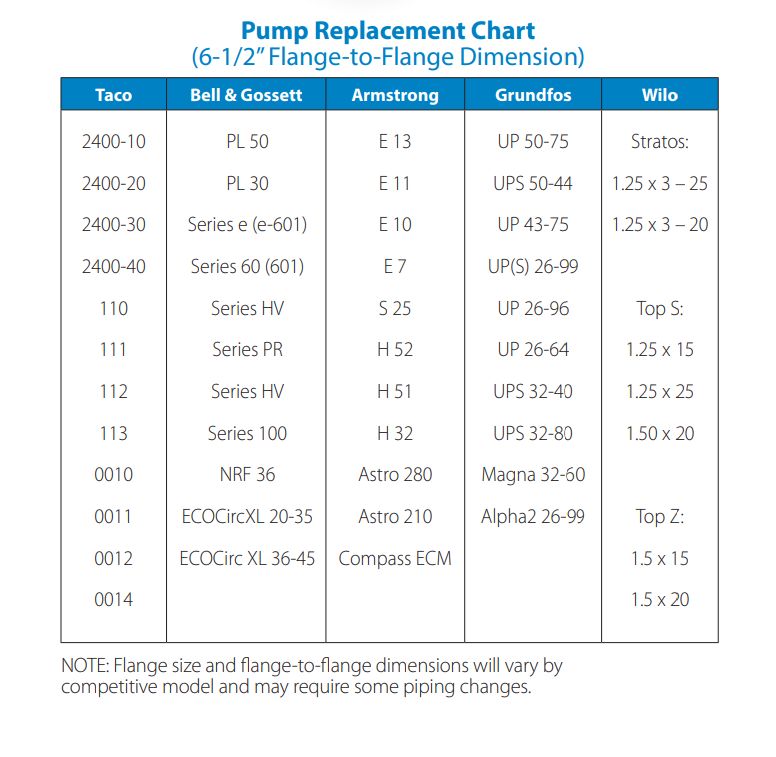

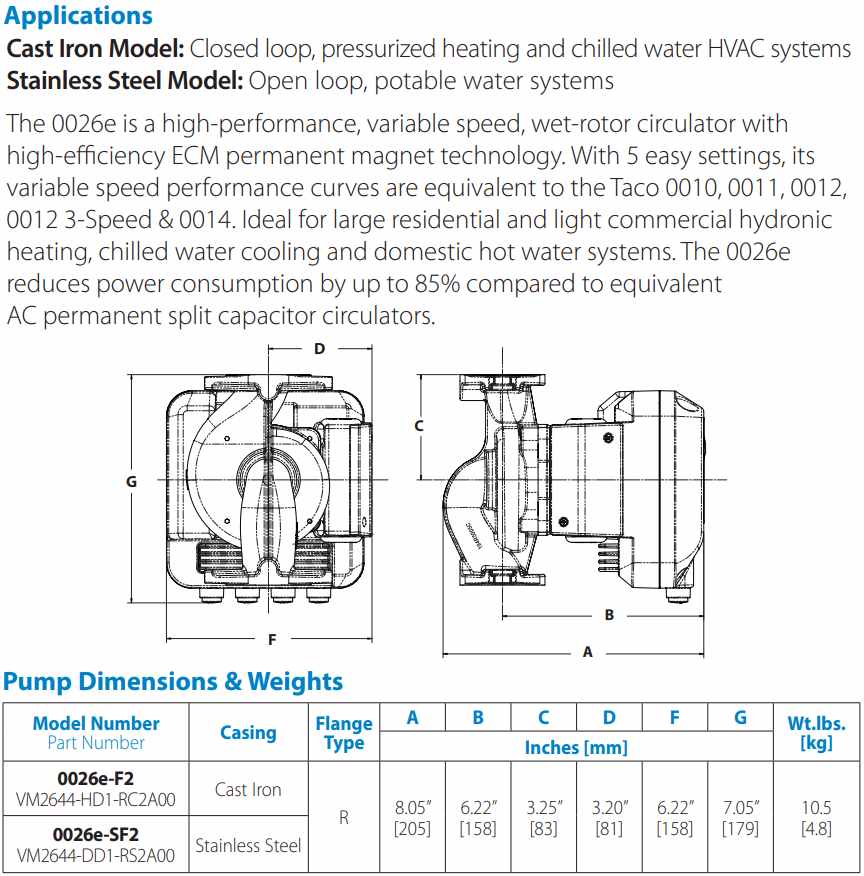

    applications image 0026e replacement chart
  • Documentation
    Catalog Taco 0026e
    Instruction Sheet-0026e Taco 0026e
    Submittal Data Sheets Taco 0026e
    0026e DD1 STEP Taco 0026e
    0026e HD1 STEP Taco 0026e
