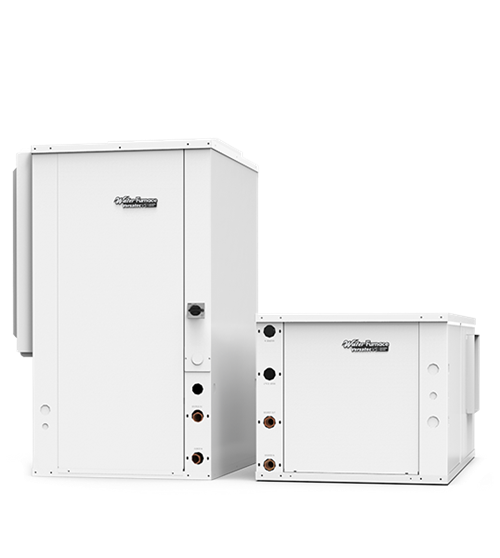

WaterFurnace Versatec 300 WSHP

The WaterFurnace Versatec 300 Water Source Heat Pump, available between 0.5 and 10 tons, offers an option for hot gas reheat which removes moisture from the air without over-cooling the space. This results in consistently dehumidified spaces for maximum comfort. The Versatec 300 boasts a very long component life, and reliability which is vital in commercial applications. With all-aluminum rifled tube-and-fin air coils as well as corrosion-proof composite or stainless steel drain pans that provide a long lifetime of reliable operation. On top of these key features, WaterFurnace offers a quick ship program. This program offers a quick turnaround on equipment orders, with a select range of Versatec 300 products qualifying for the quick ship program.

  • Versatec 300 Features
    • Unique Fan Benefits
    • Aurora Controls
    • Long Component Life
    • Quiet Operation
    • Flexible Factory-Installed Options
    • Water Side Economizer
    • Painted Cabinet
background

Aurora UPC DDC Controls

A platform that can provide feedback on your system in real-time, with the tools to control it all from any web-enabled smart phone, tablet, or computer. Receive alerts and reminders via email, text message, and in-app notifications -- for homeowners and contractors.

  • Technical Specs

    Model Versatec 300 WSHP
    Nomenclature UBH, UBV
    Type Water-to-Air
    Unit Capacity Number of Sizes Available: 12
    Tons 0.5, 0.75, 1, 1.25, 1.5, 2, 2.5, 3, 3.4, 4, 5, 6
    MBTU 006, 009, 012, 015, 018, 024, 030, 036, 041, 042, 048, 060, 070
    Efficiency GLHP: 3.3 to 3.5 COP, 14.2 to 17.0 EER
    Efficiency WLHP 4.3 to 4.9 COP, 12.2 to 14.7 EER
    Compressor Type Single-Stage Rotary
    Single-Stage Scroll
    Refrigerant R-454B
    Cabinet Configuration Vertical
    Horizontal
    Discharge Configuration Top(Vertical)
    End(Horizontal)
    Side(Horizontal)
    Return Air Configuration Left, Right
    Hot Water Generation Choices N/A
    Soft Start Choices N/A
    Refrigerant Choices N/A
    Blower Motor Choices PSC
    Variable Speed ECM
    5-Speed ECM
    Variable Speed
    Water Coil Choices Copper
    CuproNickel
    Insulated
    Uninsulated
    Water Control Choices None
    Water Flow Regulator
    2-Way Valve Water Flow Regulator
    Waterside Economizer
    Control Choices Aurora Base Control
    Aurora UPC DDC
    Aurora UPC DDC with Lon
    Electrical Choices Phase Guard Disconnect
    Cabinet Choices Unpainted Cabinet
    Painted Cabinet
    Filter Rail
    4-Sided Filter Rack
    Filter Choices 1" MERV 4
    2" MERV 13
    Air Coil Choices All-Aluminum AlumniSeal™
    Drain Pan Choices Composite
    Stainless Steel
    Secondary Connection
    Return Air Configuration Left, Right
    Voltages 208-230/60/1
    265-277/60/1
    208-230/60/3
    460/60/3
    575/60/3
    115/60/1

    Notes: Some options not available depending on specific configuration. Consult product literature for specific configuration details.
    All commercial product lines are currently in the process of being switched over to R-454B refrigerant.

    Questions? Call us at 800-665-3336 x 206 or email info@edenenergy.com

  • Documentation
    Model Versatec 300 WSHP(UBH, UBV)
    Product Brochure View File
    Installation Guide View File
    Operation Manual View File
    Hotels Brochure View File
    Revit (UBH) View Page
    Revit (UBV) View Page
